ClickCease Horseshoe Bypass Barn Door Hardware Kit - Rustic Rolling Doors

Horseshoe Bypass Barn Door Hardware Kit

Sku: BHS4D

or 4 interest-free payments when you choose Sezzle at checkout


Get the right advice from barn door specialists


Free returns on all hardware & accessories


We have 5 trees planted for each hardware kit sold


We're available to help you from 8am - 8pm, weekdays on phone, chat & email

Horseshoe Bypass Barn Door Hardware Kit by Rustic Rolling Doors

The Horseshoe Hanger Bypass Barn Door Hardware Kit has a classic design that hearkens back to the days when barn doors were used on real, working barns. The bypass kit is typically used when there is insufficient wall space to the right and/or the left of the wall opening. A bypass installation uses 2 rolling doors and 2 rolling door tracks instead of one. The second door track is cantilevered in front of the first track, so the doors roll in front and behind of each other. One bypass kit will accommodate a double door bypass configuration.


barn door hardware track thickness

Sturdy Hardware

Heavy-duty 1/4" powder-coated steel tracks and hangers are built tough to last a lifetime
barn door hardware roller

Quiet Glide Wheels

Polymer nylon wheels so that your door glides along the track quietly and smoothly
barn door hardware spacer holes

16" On Center

Tracks are drilled at 16" on center to align with stud spacing for easy installation
barn door hardware door stop

Adjustable Door Stops

Customize the open/close position of your doors with adjustable door stops
barn door hardware components

All Parts Included

Includes everything you require to mount your doors (doors & handles not included)
barn door installation instructions

Easy Installation

Easy-to-follow written & video installation instructions to make installation a breeze
barn door hardware finish

Single Finish Option

Flat Black finish only for this hardware kit
barn door hardware warranty

5 Year Warranty

We offer a 5 year, "no questions asked" warranty on all hardware parts


barn door hardware door thickness

Door Thickness

For doors 1-3/8" to 1- 3/4" thick. Click HERE if your doors are thicker or thinner
barn door hardware weight capacity

Weight Capacity

Built for a maximum weight capacity of 250lbs per door
barn door hardware track length

Track Length Options

Choose from track length from 4' to 20' long on the "Track Length" dropdown menu
bypass barn door hardware overhead clearance

Overhead Clearance

This kit requires 7-1/8" from top of door to ceiling for installation
bypass barn door hardware profile

Distance From Wall

Distance from wall to outside edge of outer door is 6"
barn door sizing

Barn Door Sizing

Recommended 2" of overlap between doors and between sides of doors and doorway. Click HERE for door sizing suggestions
barn door hardware soft close

Compatible Soft Close

Often purchased with this kit: compatible Soft Close Mechanisms
bypass barn door flush handle

Flush Handle

Recommended handles for Bypass Kits: Flush Handle

Configuration Options

bypass barn door hardware double door

2 Doors

Standard configuration. Two tracks, one door on each track. Both doors stack flush on top of each other when pushed to the open position
bypass barn door hardware 3 door

3 Doors

A third door is added to the standard configuration. Two doors on the inside track and the 3rd door on the outside track. The two doors on the inside track do not bypass each other
bypass barn door hardware 4 door

4 Doors

Two doors on each track. The two outer doors overlap the inner doors when in the closed position. The front doors sit flush in front of the back doors when in the open position. Typically used for wide doorways or for dividing rooms


What's in the box?

Find out what components are included with your bypass barn door hardware kit

Installation Guide   Spec Sheets

Get the technical information you need before you purchase

Frequently Asked Question

Get the answers to our most frequently asked questions HERE

Shipping & Returns

Shipping fee is $24. Ships within 3 business days via UPS. Click the icon to see our shipping & return policy

Installation Video

Customer Reviews

Based on 2 reviews
Ron W. (Denver, US)
Horseshoe hardware

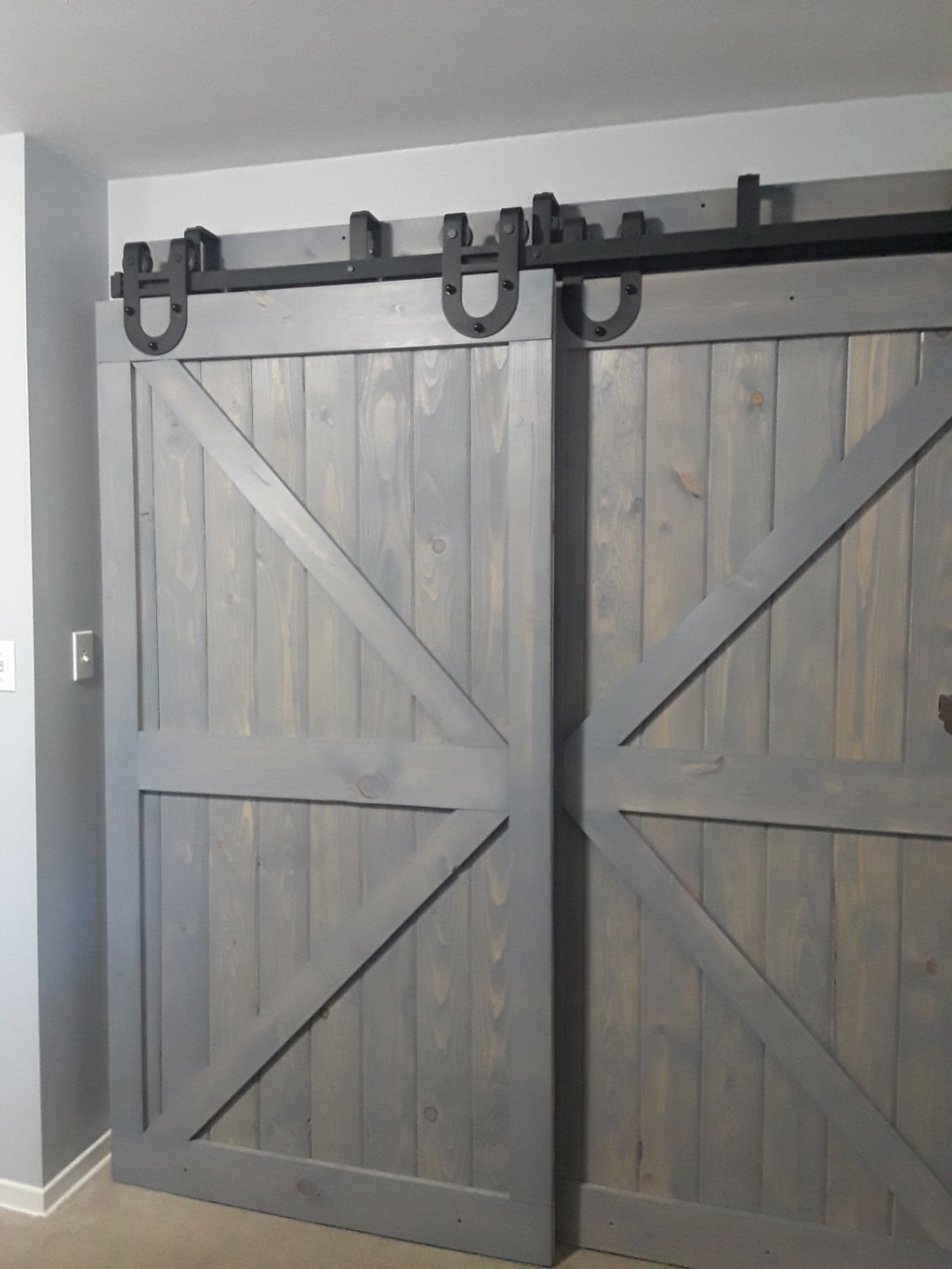

Unique product made of solid materials. Came with good instructions. I appreciate your choice of sizes as I had to match a single closet door with a double bypass. I had one minor problem with the double bypass doors. The nut on the back of the horseshoe hanger was catching the bracket as the door was being opened. I tightened the nut a few turns and had enough clearance. Thank you.

Thank you for your positive review Ron. I'm glad to hear that you are pleased with the way the it turned out. I like they way the finish looks on your Double Z doors, great job on the installation! Please let us know if there is anything else we can do to help :)

Jay A. (Lee, US)
nice materials but wrong hardware

Everything in the kit appears to be high quality materials. I had to call after my installed and I questioned the small diameter lag bolts that were to attach the hangers to my header. I got a prompt response via email saying "the warehouse says that's the correct size". I would have hoped there was a higher authority than the warehouse. I went out and purchases 16 larger lags that fit the holes more appropriately as well as 16 bolts to hold the two hanger pieces together. The nuts included would only grab 2 threads of the bolts so I was forced to purchase longer bolts. Overall I'm satisfied but bothered by the time and energy wasted in correcting the problem

Sorry to hear about this Jay, we will look into the issue and make sure that it doesn't happen again. Thank you for your feedback.
