Shipping Lead TIme
Ships via UPS ground within 2-3 business days. Usually delivered within 1 to 1-1/2 weeks
Classic Strap Bypass Barn Door Hardware Kit
Regular price
$240.00
Sale price
$240.00
Regular price
$264.00
Unit price
per
Not sure what track length you need?
Expert Advice
Get the right advice from barn door specialists
Do Good
We have 3 trees planted for each hardware kit sold
Here to Help
We’re available to help you from 9am - 5pm, weekdays on phone, chat & email
Classic Strap Bypass Barn Door Hardware Kit by Dusty's Rustic Rolling Doors
With its traditional hanger style, the Classic Strap Bypass Barn Door Hardware Kit goes well with almost any style of sliding door. A bypass kit uses two rolling doors and two tracks instead of one. The outside track is cantilevered in front of the first track so that the doors roll in front and behind each other. Bypass kits are typically used when there is insufficient wall space to the right and/or the left of the wall opening. This is a barn door hardware kit and does not include doors. We do sell barn doors and they can be found on the Barn Door Collection Page.
How Does It Work?
Features
Sturdy Hardware
Heavy-duty 1/4" powder-coated steel tracks and hangers are built tough to last a lifetime
Quiet Glide Wheels
Polymer nylon wheels so that your door glides along the track quietly and smoothly
16" On Center
Tracks are drilled at 16" on center to align with stud spacing for easy installation on tracks up to 8'
Adjustable Door Stops
Customize the open/close position of your doors with adjustable door stops
All Parts Included
Includes everything you require to mount your doors (door & handle not included)
Easy Installation
Easy-to-follow written & video installation instructions to make installation a breeze
Two Finish Options
Durable powder coated Flat Black finish. Also available in:
5 Year Warranty
We offer a 5 year, "no questions asked" warranty on all hardware parts
Specifications
Door Thickness
Compatible with doors 1-3/8" to 1- 3/4" thick. Reach out to us if your doors are thicker or thinner.
Weight Capacity
Built for a maximum weight capacity of 250lbs.
Overhead Clearance
This kit requires 7" from top of door to ceiling for installation
Distance From Wall
Distance from wall to outside edge of outer door is 6"
Flush Handle
Recommended handle for inner door and backside of doors (if required):
Classic Strap vs Low Profile
Learn the difference between the Classic Strap and Low Profile hanger designs
Configuration Options
2 Doors
Standard configuration. Two tracks, one door on each track. Both doors stack flush on top of each other when pushed to the open position
3 Doors

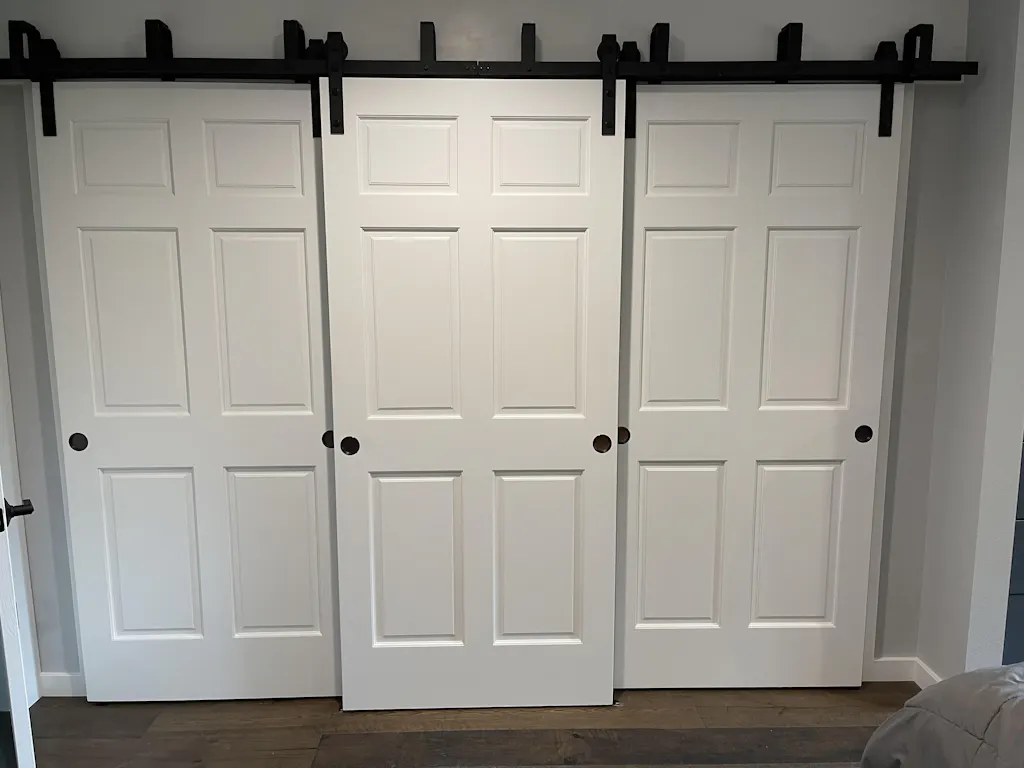

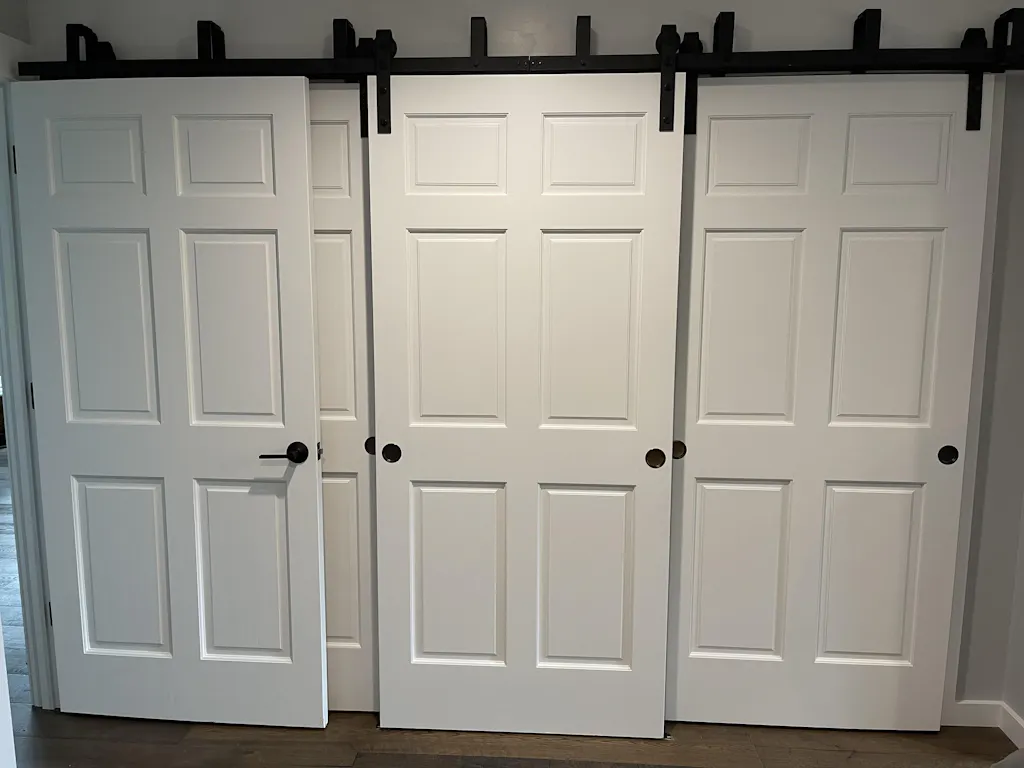

A third door is added to the standard configuration. Two doors on the inside track and the 3rd door on the outside track. The two doors on the inside track do not bypass each other
4 Doors
Two doors on each track. The two outer doors overlap the inner doors when in the closed position. The front doors sit flush in front of the back doors when in the open position. Typically used for wide doorways or for dividing rooms
Resources
What’s in the box?
Find out what components are included with your barn door hardware kit (Door not included)
Installation Guide & Spec Sheets
Our detailed installation guides and spec sheets make it easy to plan your installation
Shipping & Returns
Shipping fee is $29. Ships within 3 business days via UPS from Atlanta, Georgia. Hardware kits are typically delivered within 1 to 1-1/2 weeks.
Installation Video
Video Testimonials
John - Virginia
John used the Classic Strap Bypass Barn Door Hardware Kit to mount two large doors over his pantry. The result was a fantastic installation complete with barn door soft close.
Jared - Ocala, FL
Jared used the Classic Strap Bypass Barn Door Hardware Kit in the 3-door configuration to close off his pantry and closet. His installation went smoothly and the resulting barn doors and hardware look amazing!
Robert - St Helena, CA
Robert mounted two BarnCraft Plank Barn Doors using the Classic Strap Bypass Barn Door Hardware Kit to close off his office.
Mike - Pen Argyl, PA
Mike used the Classic Strap Bypass Barn Door Hardware Kit to mount 4 doors on 2 tracks to close off his home gym and he was very pleased with the results!
Ty - East Texas
Ty used the Classic Strap Bypass Barn Door Hardware Kit in the 4-door configuration to close off his laundry room, using barn doors that he built himself and the BarnCraft Vista Flush Pull Handles.
Customer Reviews
Based on 65 reviews
83%
(54)
9%
(6)
0%
(0)
2%
(1)
6%
(4)
M
We recently went through a major renovation. The main bedroom closet measurements were done incorrectly & our plan for sliding doors wouldn’t work without major rework. We started researching options. Looking at barn door options appeared to be too intrusive and we would then have issues with the door into the room which is right next to the closet opening. We found Dusty’s hardware and could not be happier! It looks stunning but, more importantly, it’s very well made and safe holding very heavy doors. Plus the option we selected gives us a low enough profile for us to open the room door completely. It was also nice to have so many decorative options even though we ended up liking the more straight/square one. The soft close bumpers are a must have so be sure to add them to your order. 100% recommend this product.
Really appreciate you taking the time to share this—this is exactly the kind of real-world experience that makes our day. We’re glad the hardware helped you solve a tricky renovation situation and that it not only worked out structurally but also looks great in your space. Thank you again for the thoughtful feedback and recommendation—it truly means a lot! 🙌
J
I thought that it would take some time to get my double door 8 foot order, but I was wrong. It can to me in perfect condition and was packaged very well.... heavy, but in perfect shape. I unpacked it and moved it to the room it will be installed. That is as far as I got, so far, but cannot wait to install it. I have finished the other parts of the room, but I have to reinforce the wall where these doors will live. That will take some time. I will update this when I get to the assembly.
Thank you for sharing your experience! We’re glad to hear your hardware kit arrived safely and in perfect condition. Can’t wait to hear how the installation goes—looking forward to your update!
D
Very impressed with the online step by step installation process on YouTube, Also the Shipment of hardware was very quick and complete. Just as promised!! Heavy duty hardware, first rate quality you can tell immediately when you open the box, I would definitely use Dusty's Rolling doors on my next project.
Thank you for taking the time to share your positive experience with our Hardware Kit! We're glad to hear that you found our online installation process easy to follow and that our shipment was prompt and complete. Thank you for considering us for your next project. We look forward to your future projects!
A
I recently installed two barn doors over a 100” opening, so each door was 53” wide and the total run was 13’. It was my first time using Dusty’s hardware.
I found the hardware very strong and easy to work with. Each of my doors weighed 120 pounds and the hardware handled it with ease.
Two observations. The door stops on the rail are the best design I’ve ever seen, and I’ve installed well over 100 doors. Dusty’s door stop is configured to slide past and over the lag bolt head which is just brilliant. The ‘J’ straps are strong and the wheels roll very smoothly.
If I had a suggestion it would be to move to a 5” lag bolt for attaching the rail to the wall. The four inch supplied lag bolts are too short for a heavy door, and 5” is not too long when using a mounting board on the wall, and I would never install a door without a mounting board.
But beyond that I liked the hardware and Dusty’s will be my go-to for hardware from now on.
Thank you for leaving such a detailed review of our Kit! We are so glad to hear that our hardware was able to handle your 120-pound doors with ease and that you found it easy to work with. We also appreciate your feedback on the lag bolt length, and will consider it. Thanks for making Dusty's your go-to for hardware, we appreciate your support!
G
Plan to install soon
Thank you for the 5 star review! Feel free to reach out to us if you have any questions.
