Top Mount Single/Double Barn Door Hardware Kit
Regular price
$114.00
Sale price
$114.00
Regular price
$148.00
Unit price
per
Not sure what track length you need?
Easy Returns
Easy returns on hardware & accessories
Do Good
We have 3 trees planted for each hardware kit sold
Here to Help
We’re available to help you from 9am - 5pm, weekdays on phone, chat & email
Top Mount Barn Door Hardware Kit by Dusty's Rustic Rolling Doors
With its unique top-mount design, this hardware kit is great for installations where there is insufficient space on the front of the door to mount a traditional, front-mounted hanger. Common uses are for glass doors or doors with ornate designs. This is a barn door hardware kit and does not include doors. We do sell barn doors and they can be found on the Barn Door Collection Page.
Features
Floor Guides
Includes floor mounted dual-clip floor guides to keep your door from swaying
Quiet Glide Wheels
Polymer nylon wheels so that your door glides along the track quietly and smoothly
16" On Center
Tracks are drilled at 16" on center to align with stud spacing for easy installation on tracks up to 8'
Adjustable Door Stops
Customize the open/close position of your doors with adjustable door stops
All Parts Included
Includes everything you require to mount your doors (door & handle not included)
Easy Installation
Easy-to-follow written & video installation instructions to make installation a breeze
Two Finish Options
Available in the two most popular finish options: Flat Black or Brushed Nickel
5 Year Warranty
We offer a 5 year, "no questions asked" warranty on all hardware parts
Specifications
Door Thickness
Compatible with doors 1-3/8" to 1- 3/4" thick. If your doors are thicker or thinner you will require:
Weight Capacity
Built for a maximum weight capacity of 250lbs per door
Track Length Options
Choose from track length from 4' to 20' long on the "Track Length" dropdown menu
Overhead Clearance
This kit requires 4-7/16" from top of door to ceiling for installation
Distance From Wall
The distance from wall to outside edge of door is 2-1/4"
Sturdy Hardware
Heavy-duty 1/4" powder-coated steel tracks and hangers are built tough to last a lifetime
Configuration Options
Single Door
A single door is used for narrow doorways that have enough space on one side of the doorway to slide the door over when opening it. Doorways without enough space will require a bypass hardware kit.
Recommended track length: twice the width of your door
Double Door
A double door (bi-part) configuration is used when there is enough space on both sides of the doorway. The doors meet in the middle and are pushed to either side when opening.
Recommended track length: twice as long as the combined width of both of your doors
Resources
What’s in the box?
Find out what components are included with your barn door hardware kit (Door not included)
Installation Guide & Spec Sheets
Our detailed installation guides and spec sheets make it easy to plan your installation
Shipping & Returns
Shipping fee is $24. Ships within 3 business days via UPS from Atlanta, Georgia. Hardware kits are typically delivered within 1 to 1-1/2 weeks.
Installation Video
Video Testimonials
Shane - Yuma, AZ
Shane used the Top Mount Single Barn Door Hardware Kit to mount a beautiful door to close off one of his closets.
Chase - Windsor, CO
Chase used the Top Mount Single Barn Door Hardware Kit to mount a beautiful door he built from African Mahogany.
Zandra - Austin, TX
Zandra used the Top Mount Barn Door Hardware Kits to close off a laundry room and bathroom off of her hallway. The barn door installations saved space in the hallway and turned out nicely.
Matt - St. George, UT
Matt used the Low Profile Double Barn Door Hardware Kit with the Soft Close option to close off the ensuite bathroom in his master bedroom.
Vincent - Raleigh, NC
Vincent shows us how he blocks out light in his bedroom using barn doors and the Top Mount Barn Door Hardware Kit.
Customer Reviews
Based on 28 reviews
93%
(26)
0%
(0)
4%
(1)
4%
(1)
0%
(0)
B

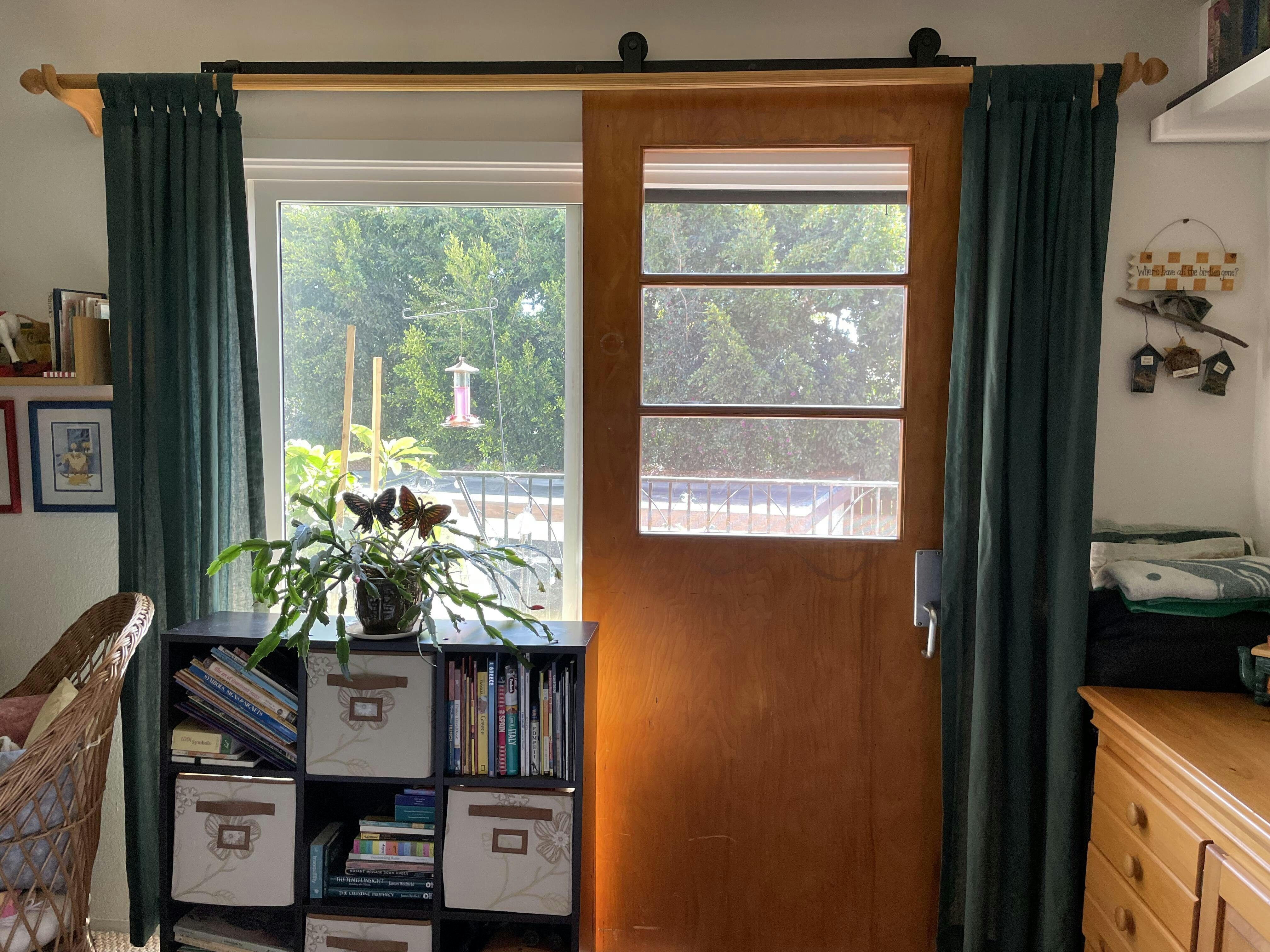

We hung our French doors and they look great!
J
The order was definitely what was ordered and what was needed to complete my project !!!!
P
all parts arrived quickly and as advertised. My only (minor) complaint is that the top mount rollers were a little tricky to install. An improvement would be to have the mounting holes line up with the center of the roller. That way you don't have to account for the offset. For sure would order from Dusty's again, great product!
g
We love the hardware we received for the doors. The only variable was the thickness of two of our doors being hung, I needed to purchase locally smaller bolts for attaching the parts to the door.
Thank you for your review! We are glad to hear that you love the hardware for your doors!
S
Everything was great with our order. Shipped as planned and on time. Customer service was great too with installation questions I had.
Hi Michaelson, thank you for taking the time to leave us a review. We are happy to hear that everything went smoothly with your order and that our customer service team was able to assist you with your installation questions.
